SPECIFICATIONS

1 x 100Mbps Ethernet Port: Wi-Fi:IEEE802.11b/g/n, 2.4GHz, Wi-Fi 6, 50m Open Field

AI Functions: Pet Detection

Abnormal Sound Alarm: Yes, Support

App name: Imou Life

Audio Output: Two Way Audio

Brand Name: IMOU

Certification: CE,FCC

Color: WHITE

Color Night Vision: Yes

Configurable Region: Yes, Support

Connectivity: WIFI(2.4GHz)

Dimensions (L x W x D)(mm): 82.2*82.2*115.4mm (3.2*3.2*4.5inch)

Fixed Lens_Angle: 0~355°Pan & 0~15°Tilt

Fixed Lens_Field of View: 84°(H), 45°(V),101°(D)

Frame Rate: Up to 15 fps

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Human Detection: Yes, Support

IR Distance(m): 15m(49ft) Distance

Installation: Normal

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Dual Lens

Megapixels: 5MP

Micro SD Card Slot: Up to 256GB

Model Number: Ranger Dual

Motion Detection: Yes, Support

Movement Range(Tilt): -10°-180°

Night Vision: Dual Light Full-Color

Onvif: Yes, Support

Operating Temperature: -10°C~+45°C, Less Than 95%RH

Origin: Mainland China

Pan & Tilt Lens_Angle: 0~355°Pan & 0~90°Tilt

Pan & Tilt Lens_Field of View: 87°(H), 47°(V),105°(D)

Pet Detection: Yes, Support

Power Consumption: <5.65 W

Power Consumption(W): < 3.5W

Power Mode: Mains Electricity

Power Supply: Normal

Power Supply(V): DC 5V1A

Scene: Indoor

Sensor: CMOS

Sensor Brand: Omnivision

Smart home platform: other,alexa

Style: PT Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,Windows 10

TF Card: None

Two-way Audio (Built-in Mic & Speaker): Yes, Support

Video Compression: H.265/H.264

Video Compression Format: H.264,H.265

Viewing Angle : 360°

Weight: 225g (0.51lb)

Zoom: 8x

Zoom type: Digital zoom

is_customized: No

Ranger Dual 6MP/8MP/10MP

Dual-lens gives you 360° protection

3+3MP Wide View | 3+5MP Wide View | 5+5MP Wide View

Smart Full-color Night Vision

Wide View Dual Lens | IMOU SENSE® Dual-channel

Human & Pet Detection Two lens resolution total 8MP | Smart color Night Vision | AI Human & Pet Detection | Two-way Audio

Abnormal Sound Alarm | Smart Tracking | Privacy Mode |Supports Wi-Fi 6 ConnectionNote: Support period of firmware is at least 2 years, the day of firmware update cessation is 2027/12/31. It means that from then we'll no longer maintain any firmware updates (including security updates) for them, and may no longer respond to security vulnerability reports for such products either. Meanwhile, we'll continue to provide after-sales service for any hardware issues with the product, as long as it is still supported by the warranty policy.

Securing 2 zones at once

In addition to the normal PTZ lens, the Ranger Dual has a fixed lens on the bottom that allows you to monitor two areas at once.Multiple lens combinations for all your needs

▶ 3MP Fixed Lens + 3MP Pan & Tilt Lens

▶ 3MP Fixed Lens + 5MP Pan & Tilt Lens

▶ 5MP Fixed Lens + 5MP Pan & Tilt Lens

Ranger Dual offers 3+3MP , 3+5MP ,5+5MP lens combination options, provide you with clearer and wider view images.Light the night up with smartness

Ranger Dual can adjust different night vision modes according to your needs, whether you want the night vision to remain in full color all the time or want to turn on full color only when there is an event to save energy, it can always satisfy you.The adjustable dual-lens gives you 360° protection

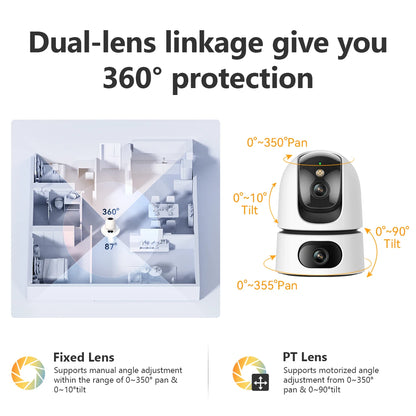

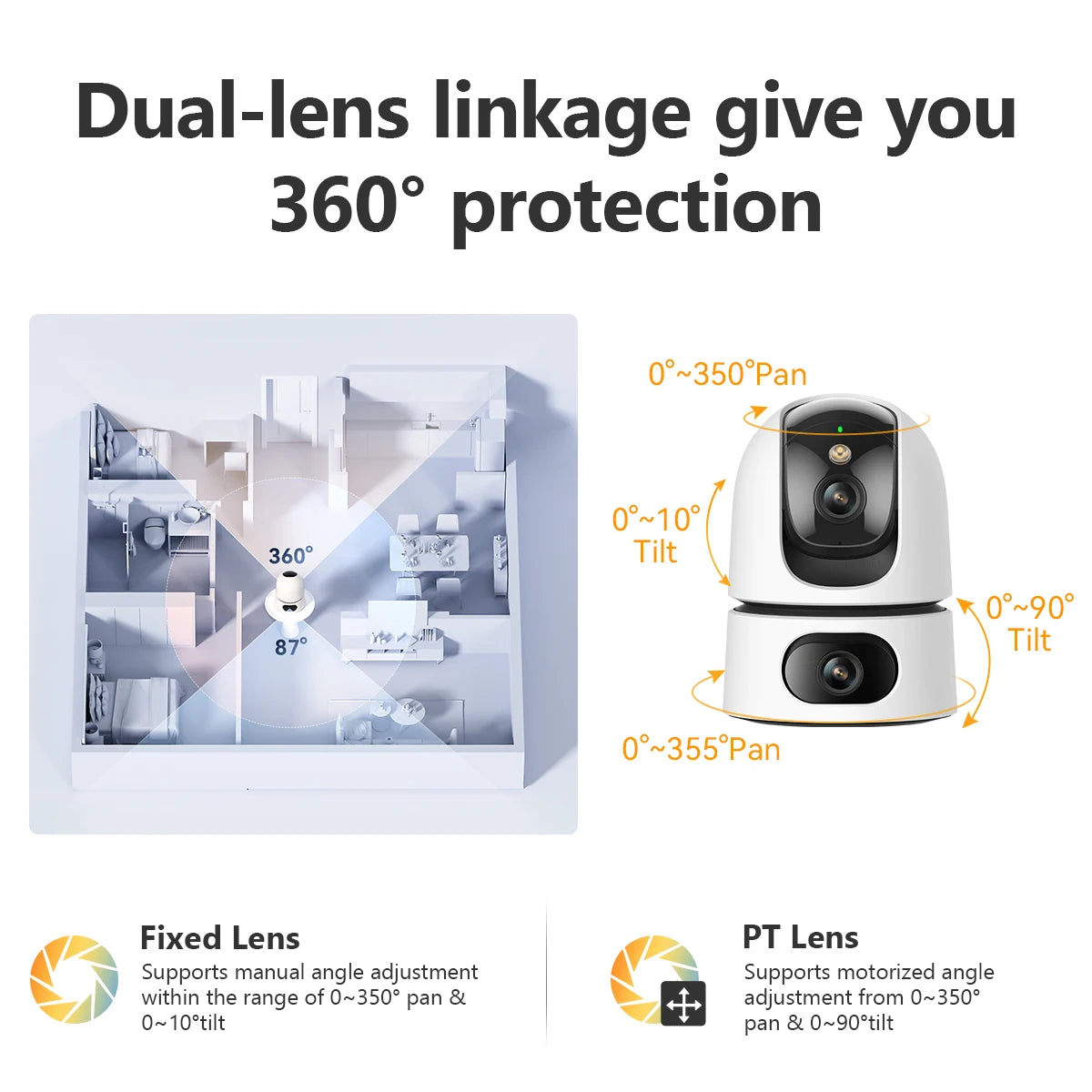

The Ranger Dual's pan-tilt lens supports 0°-355° horizontal rotation and 0°-90° vertical rotation, while the fixed lens supports 0°-350° horizontal rotation and 0°-10° vertical rotation to protect your home 360°.Precise human & pet detection

With the support of IMOU SENSE™, the newly upgraded AI can effectively improve the accuracy of detecting people and pets, and can intelligently track the target; when there is an event triggered, in addition to pushing information to the user's phone, the device itself will also alarm.Two-way Audio, Connect your home from anywhere

A built-in speaker and a microphone with the echo cancellation feature allow you to interact with pets and family from anywhere.Protect according to your preferences

Favorite Point Setting | Customizable detection zone

Customizable Alarm Sound | Protection SchedulingDeter unwelcome visitors

Ranger Dual keeps an eye on your house, when someone breaks in, the 110dB siren will turn on to deter the unwelcome visitor.Protect your privacy with just a touch

The Ranger Dual detects unusually high decibel sounds such as babies crying and glasses breaking, so you can be in control of your home wherever you are.Put your camera further with Wi-Fi 6

Ranger Dual supports the latest Wi-Fi 6 standard with higher data transfer rates and better wall penetration, allowing your security range wider.Work with Smart Home Platform

Imou life/AlexaOperating with Imou Life App

▶ Step 1

Scan the following QR code or search “Imou Life” in Google Play or App Store to download and install the app.

▶ Step 2

Run Imou Life App, and then register an account for the first use.

▶ Step 3

Connect the camera to power source with the power adapter.

▶ Step 4

Wait for booting to be finished, and then the camera indicator flashes with green light.

▶ Step 5

Do the following operations to finish adding camera.

Note：

If you have more than one camera, do step 5 to add them one by one.

②If the Wi-Fi network has changed or the indicator status goes wrong, reset the camera, and then do step 5 to add it again.What's in the box?

- 1x Camera

- 1x Quick Installation Board

- 1x Installation Position Map

- 1x Power Adapter

- 1x Quick Start Guide

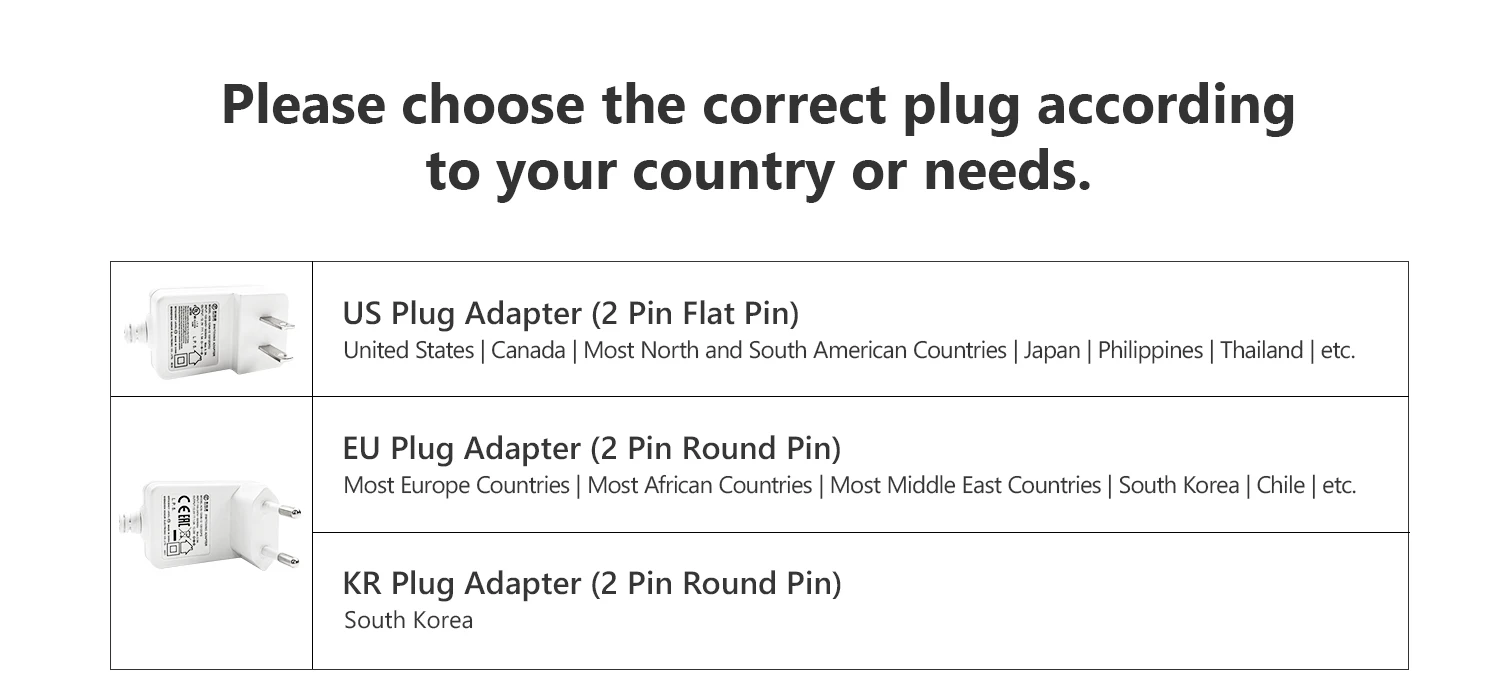

- 1x Screw PackageSpecificationsPlease choose the correct plug according to your country or needs.

♦EU Plug Adapter (2 Pin Round Pin)

Most Europe Countries | Most African Countries | Most Middle East Countries | South Korea | Chile | etc.

♦ US Plug Adapter (2 Pin Flat Pin)

United States | Canada | Most North and South American Countries | Japan | Philippines | Thailand | etc.Q&A area
